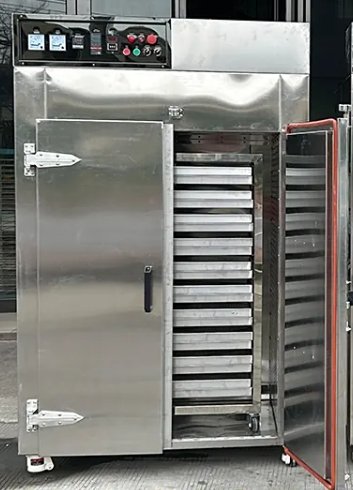

Natural gas heating oven

Product Advantages：

The chamber is equipped with an adjustable air distribution plate, allowing for adjustable gaps to control airflow and maintain a more uniform

temperature within the chamber.

Energy-saving and emission-reduction technology, all-fiber high-pressure module insulation, low thermal conductivity, low heat capacity, and excellent

corrosion resistance.

Excellent oxidation resistance, high-temperature and high-load resistance, and no cracking at ultra-high temperatures, ensuring year-round

maintenance-free operation.

The outer shell is constructed of a tightly welded steel channel steel keel structure, creating a durable furnace structure reinforced with composite

channel steel.

The Natural Gas Heating Oven is a new type of industrial drying equipment that utilizes natural gas as a heat source. With its exceptional energy-saving and

environmentally friendly features, it is becoming the preferred drying solution for large-scale production across various industries. This equipment generates

heat by burning natural gas, combined with an efficient hot air circulation system, to provide a stable and uniform drying environment for materials.

The Natural Gas Heating Oven utilizes an advanced combustion system that transfers the heat generated by natural gas combustion to the circulating air

via a heat exchanger. The heated air, driven by a fan, forms a uniform hot air flow that penetrates the material layer and evaporates moisture. The equipment

primarily comprises a combustion system, hot air circulation system, temperature control system, and safety protection system, ensuring stable and reliable

operation. Its unique waste heat recovery design fully utilizes the heat in the flue gas, further improving thermal efficiency.

Tank Dimensions: 4600mm W x 4200mm D x 1830mm H

Temperature Range: Adjustable from room temperature to 250°C (constant temperature possible).

Temperature Fluctuation: ±1°C

Temperature Uniformity: ±2% (tested at constant temperature, no-load).

Heating Rate: ≥8°C/min

Casing Temperature: No more than +15°C above ambient temperature, excluding joints and joints.

Air Circulation: Forced left-right circulation of hot air, with two 5.5kW heat-insulating fans for circulation heating.

Control Power Supply: Three-phase, five-wire, 480V, 60Hz, total power approximately 12kW.

Heating Source: One imported 200,000 kcal split burner.
